Pool filtration

Series filter D.1000 mm, 32-39 m³/h, 63 mm, filtration bed height 1 m, with valve

SKU	021316HB
Sand loading	1160 kg
Maximum working pressure	2.5 kg/cm²
Fill height	1 m
Side hatch	Yes
Test pressure	3.5 kg/cm2
Output (single-layer fill)	32 m³/h
Flow rate (multi-layer media)	39 m³/h
Country of manufacture	Turkey

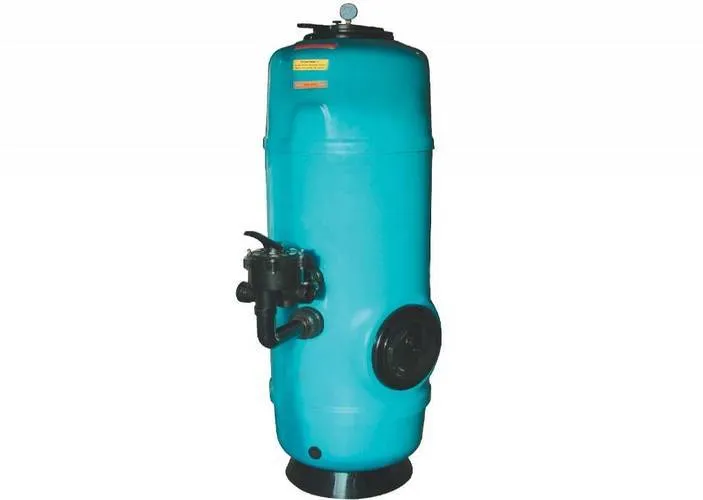

Tall sand filter with side valve.

The filter body is made of laminated polyester, reinforced with fiberglass, with a 63mm side valve.

The test pressure for the filter is 3.5 kg/cm2.

Working pressure is 2.5 kg/cm2.

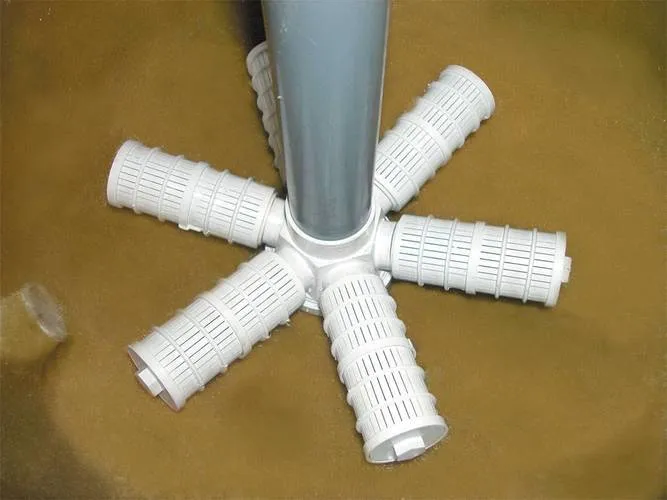

The distributor has a reinforced design that guarantees long-term operation without breakage.

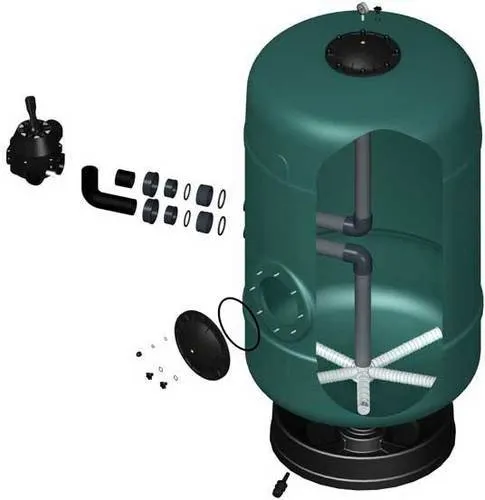

Included:

side-mount valve 63 mm;

air release valve;

pressure gauge.

with a single-layer sand bed - 32 m³/h.

with multi-layer (sand, gravel) - 39 m³/h.

This filter CAN be supplied in the DIN version at extra cost.
