Maxi-flo 60 kW tubular heat exchanger AISI 316L, MF200

34 292 ₴/ pcs

Out of stock

SKU	11366
Power	60 kW
Recommended primary circuit flow (hot water)	30 L/min
Recommended secondary circuit flow (pool water)	250 L/min
Heating circuit connection	1"
Pool circuit connection	1 1/2"
Heater length	485 mm
Heater width	139 mm
Maximum pressure in the primary circuit	10 bar
Maximum pressure in the secondary circuit	5 bar
Country of manufacture	Sweden

Tubular heat exchanger with excellent heating properties. Used for heating water in indoor and outdoor swimming pools, spas, jacuzzis and plunge pools. The unit housing is made of high-quality acid-resistant stainless steel AISI 316L and powder-coated for optimal service life.

Pahlen heat exchangers are optimized for high performance and low pressure drop. They offer high performance and excellent heat transfer.

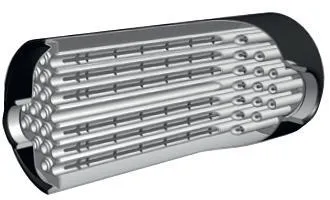

Heat exchange takes place by heat transfer: hot water is pumped from the source by a pump and flows inside the housing through 37 seamless tubes with flow distributors. The hot liquid flows in the opposite direction to the cold one, allowing maximum heat transfer.

Suitable for pools up to 120 m³.

Features:

• Acid-resistant stainless steel.

• Precision-welded outer shell.

• 37 seamless tubes with hot water flow restrictors.

• Adjustable brackets made of acid-resistant stainless steel.

• Four sizes: 40, 60, 75 and 120 kW

• Connects to an existing heat source

• Can be connected in series if required.

A heat exchanger is used to transfer thermal energy from one medium to another without mixing the two media. Pahlen cross-flow heat exchangers provide high performance and excellent heat transfer. All models can be installed and connected to electric, wood, pellet or oil boilers, as well as to heat pumps and solar panel systems.

Connecting the heat exchanger to the water filtration system:

Overall dimensions of the Pahlen Maxi-Flow 60 kW heat exchanger

Technical specifications of Pahlen Maxi-Flow series heat exchangers
