Hi-flow 28 kW spiral heat exchanger AISI 316L stainless steel

SKU	11392
Power	28 kW
Recommended secondary circuit flow (pool water)	300 L/min
Heating circuit connection	1 1/2"
Pool circuit connection	3/4"
Heater length	407 mm
Heater width	139 mm
Recommended primary circuit flow (hot water)	25 L/min
Maximum pressure in the primary circuit	60 bar
Maximum pressure in the secondary circuit	10 bar
Country of manufacture	Sweden

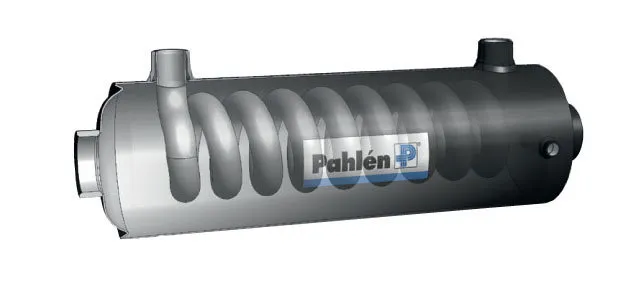

Spiral heat exchanger for heating water in indoor and outdoor swimming pools, spas, jacuzzis and water attractions. Thanks to its compact dimensions, it takes up little space in plant pits. The device body is made of high-quality stainless steel and powder-coated.

This extends the service life of the heater. Heat transfer takes place through a heating element made in the form of a coil.

Heat exchange takes place by transferring heat from the house heating circuit (boilers, water heaters, heat pumps) to the pool circuit. The hot water circuit runs counter to the cold water circuit, so heat exchange is fast and with little heat loss.

Suitable for pools up to 55 m³.

Features:

• Acid-resistant stainless steel.

• Precision-welded outer shell.

• Adjustable brackets made of acid-resistant stainless steel.

• Four sizes: 13, 28, 40 and 75 kW

• Connects to an existing heat source

• Can be connected in series if required.

A heat exchanger is used to transfer thermal energy from one medium to another without mixing the two media. Pahlen cross-flow heat exchangers provide high performance and excellent heat transfer. All models can be installed and connected to electric, wood, pellet or oil boilers, as well as to heat pumps and solar panel systems.

Connecting the heat exchanger to the water filtration system:

Overall dimensions of the Pahlen Hi-Flow 28 kW heat exchanger

Technical specifications of Pahlen Hi-Flow series heat exchangers
