Hi-Temp 40 kW coil heat exchanger, thermoplastic

SKU	11312
Power	40 kW
Heating circuit connection	1" female thread
Pool circuit connection	50 mm for gluing
Heater length	360 mm
Heater width	116 mm
Maximum pressure in the primary circuit	5 bar
Maximum pressure in the secondary circuit	4 bar
Optimal primary circuit flow (hot water)	34 L/min
Optimal secondary circuit flow (pool water)	300 L/min
Country of manufacture	Sweden

Spiral heat exchanger made of high glass-content thermoplastic for extra strength, with an acid-resistant stainless steel coil.

Thanks to the material used, the heat exchanger can withstand high heating-medium temperatures.

The manufacturer has long established itself as one of the largest and best suppliers of water heating equipment for swimming pools of any type, hydromassage spa pools and plunge pools.

Installation of the heat exchanger is quite simple thanks to the wall-mounting plate built into the housing; with its compact size, it takes up little space in technical pits.

Heat is transferred through a heating element in the form of a coil. The heating element is made of acid-resistant stainless steel, which makes it immune to corrosion and resistant to acids and aggressive environments.

The heat exchanger is connected to a heat source (solid-fuel or gas boiler, solar system, ground-source or air-source heat pump) via a heating circuit laid to the installation site. Heat exchange takes place by transferring heat from the house heating circuit to the pool circuit.

Suitable for pools up to 80 m3.

Features:

• Acid-resistant stainless steel.

• Outer shell made of high-quality thermoplastic.

• Built-in wall mounting.

• Mounts horizontally or vertically.

• Two sizes: 40 and 75 kW

• Connects to an existing heat source

• Can be connected in series if required.

Pahlen HI-Temp HT coil heat exchanger for heating pool water, with a housing made of reinforced heat-resistant plastic; the heating circuit coil is made of high-quality acid-resistant AISI 316L stainless steel. Suitable for use in pools with electrolysis units. Increased resistance to aggressive environments. Long service life.

Connecting the heat exchanger to the water filtration system:

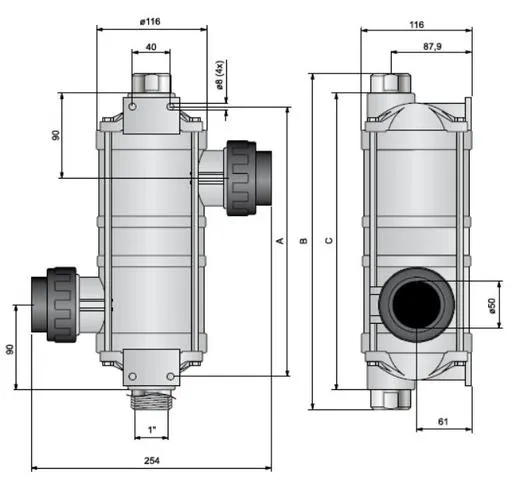

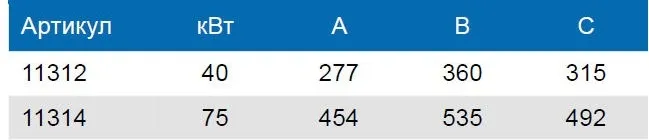

Overall dimensions of the Pahlen HI-Temp HT 40 kW heat exchanger
