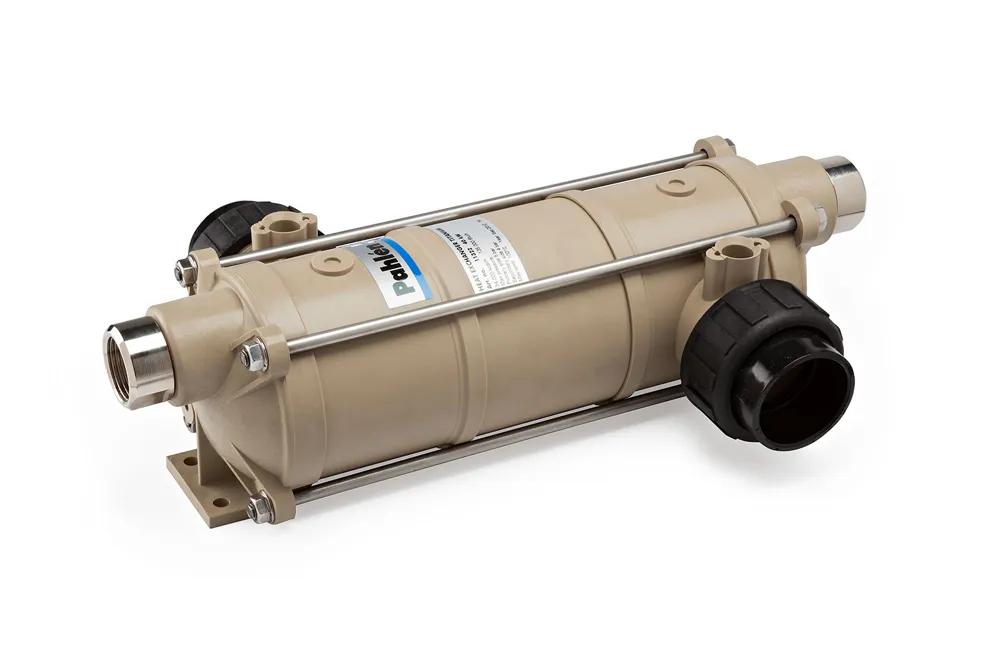

HT titanium 40 kW spiral heat exchanger made of thermoplastic

SKU	11322
Power	40 kW
Heating circuit connection	1"
Pool circuit connection	50 mm for gluing
Heater length	418 mm
Heater width	254 mm
Maximum pressure in the primary circuit	5 bar
Maximum pressure in the secondary circuit	4 bar
Optimal primary circuit flow (hot water)	52 L/min
Optimal secondary circuit flow (pool water)	300 L/min
For pool	up to 80 m³
Weight	1.98 kg
Country of manufacture	Sweden

Spiral heat exchanger made of thermoplastic with a high glass content for extra strength, with a high-quality titanium coil.

The heat exchanger is designed for use in the harshest conditions. The titanium coil allows use in aggressive environments with a high risk of corrosion, such as salt water when using salt generators (electrolysis).

The manufacturer has long established itself as one of the largest and best suppliers of water heating equipment for swimming pools of any type, hydromassage spa pools and plunge pools.

Installation of the heat exchanger is quite simple thanks to the wall-mounting plate built into the housing; with its compact size, it takes up little space in technical pits.

The spiral design significantly improves heat transfer quality and heat exchange intensity while keeping the unit compact.

The heat exchanger is connected to a heat source (solid-fuel or gas boiler, solar system, ground-source or air-source heat pump) via a heating circuit laid to the installation site. Heat exchange takes place by transferring heat from the house heating circuit to the pool circuit.

Suitable for pools up to 80 m3.

Features:

• Titanium coil, maximally resistant to aggressive environments.

• Outer shell made of high-quality thermoplastic.

• Can be used in salt water.

• Built-in wall mounting.

• Mounts horizontally or vertically.

• Two sizes: 40 and 75 kW

• Connects to an existing heat source

• Can be connected in series if required.

To heat the water in a swimming pool, it is recommended to install the Pahlen Hi-Temp Titan 75 heat exchanger. It is a high-quality Swedish-made heat exchanger whose main heating element is a coil (made of titanium). Thanks to this, the heat exchanger can be used in saltwater pools.

Overall dimensions of the Pahlen HI-Temp titanium 40 kW heat exchanger

Connecting the heat exchanger to the water filtration system:
